Interaction System

A fully customizable interaction framework for Unity, created for my own project but which I plan to convert into an asset for the Unity Asset Store. It's designed to let developers easily place interactive elements anywhere in their game world — from doors and drawers to collective items or places.

Each interaction operates under three configurable states — Directional 3D, Directional 2D and Omnidirectional — allowing it to adapt to different perspectives and gameplay situations. Every interaction includes detailed control over view distance, interaction range, angle thresholds, and fade transitions, ensuring smooth, natural behavior as the player approaches or moves away.

Drawer code below

● Built with an inheritance-based architecture, the system enables developers to extend functionality and program custom interaction types to fit any gameplay need.
● Additional options like "Maintain Initial Rotation" or "Only See With Raycast" allow for precise visual and logical control, ensuring interactions behave consistently within complex environments.
● Finally, a conditional system lets interactions respond dynamically to gameplay logic — for example, making an object interactable only if the player has a specific item, has visited certain areas, or meets predefined requirements.

This flexibility makes the Interaction System suitable for an infinite range of use cases, adapting effortlessly to any genre or design.

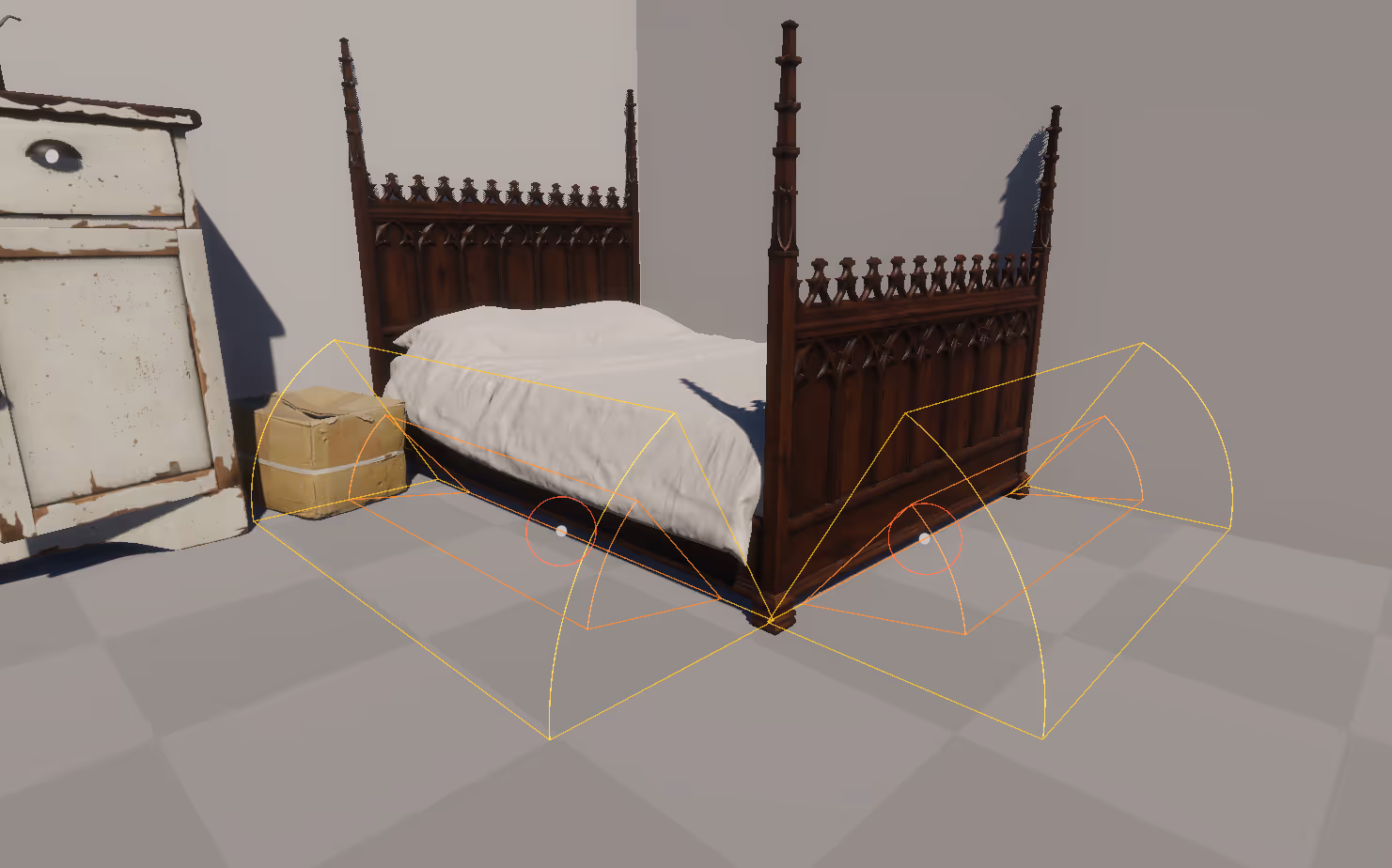

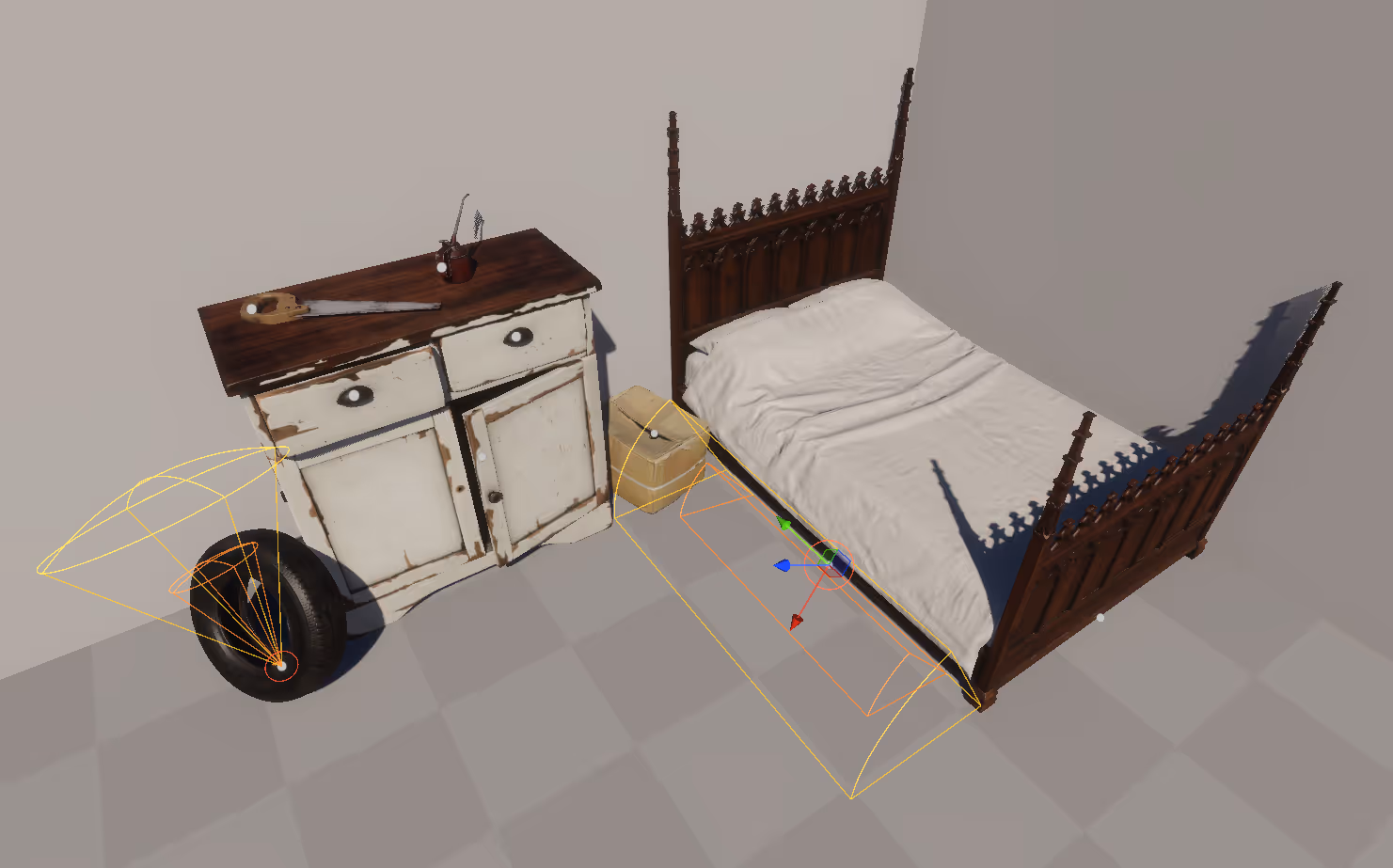

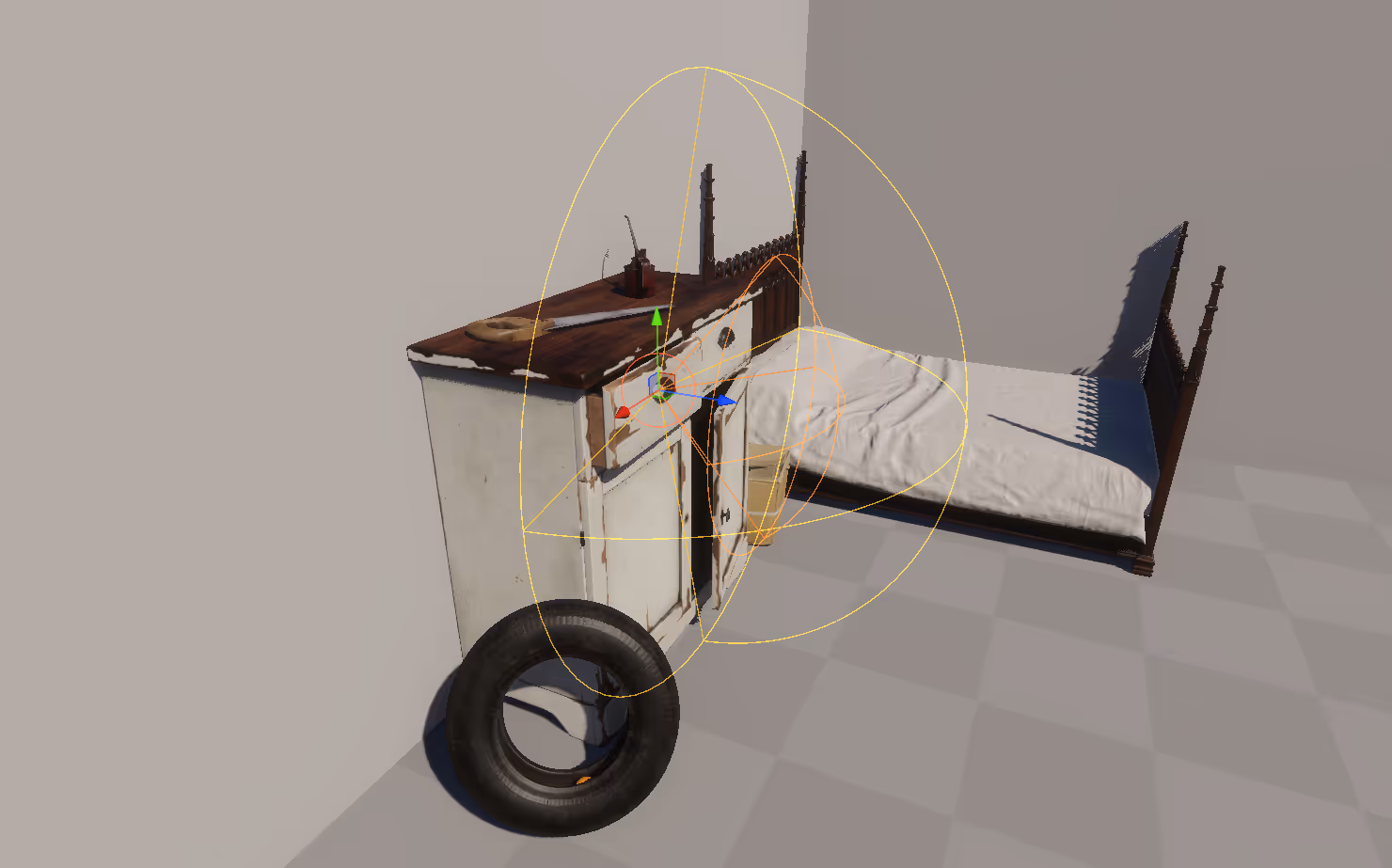

● The yellow cone represents the range where the interaction begins to become visible.
● The orange cone indicates the area where it can be interacted with.
● The size of the red circle defines how precisely the player must aim the camera to interact.

This flexibility makes the Interaction System suitable for an infinite range of use cases, for example, it is perfect for hidden objects.

Lightweight, visually appealing, scalable and very intuitive in the editor. Multi-object editing included.

Code I made for a drawer using Interaction

1using System.Collections;
2using Inputs;
3using SystemUtilities;
4using UnityEngine;
5
6namespace Interactions
7{
8    public class Drawer_Interaction : Interaction
9    {
10        // ----- Serialized Fields
11        [SerializeField] private Rigidbody rb;
12        [SerializeField] private float strength = 2f;
13        [SerializeField] private float distanceToApplyForce = 0.2f;
14
15        // ----- Unity Events
16        void OnEnable()
17        {
18            InputManager.Instance.OnInteractCanceled += StopInteracting;
19        }
20
21        void OnDisable()
22        {
23            InputManager.Instance.OnInteractCanceled -= StopInteracting;
24        }
25
26        // ----- Private Methods
27        private void StopInteracting()
28        {
29            StopAllCoroutines();
30        }
31
32        private IEnumerator MoveObject(Transform cam)
33        {
34            while (true)
35            {
36                float pointDistance = Vector3.Distance(transform.position, cam.position);
37                Vector3 camPoint = cam.position + cam.forward * pointDistance;
38
39                Vector3 lineDir = rb.transform.forward;
40                float projectionAmount = Vector3.Dot(camPoint - transform.position, lineDir);
41                Vector3 targetPoint = transform.position + lineDir * projectionAmount;
42
43                if (Vector3.Distance(cam.position, targetPoint) > InteractDistance)
44                {
45                    float clampedProjection = Vector3.Dot(cam.position + cam.forward * InteractDistance - transform.position, lineDir);
46                    targetPoint = transform.position + lineDir * clampedProjection;
47                }
48
49                DebugHelper.DebugDrawCube(targetPoint, 0.1f, Color.cyan);
50
51                Vector3 forceDir = (targetPoint - transform.position).normalized;
52                float targetDistance = Vector3.Distance(transform.position, targetPoint);
53
54                float forceMagnitude = targetDistance.MapClamp(0f, distanceToApplyForce, 0f, strength);
55                rb.linearVelocity = forceDir * forceMagnitude;
56
57                yield return null;
58            }
59        }
60
61        // ----- Public Methods
62        public override void Interact(InteractInfo info)
63        {
64            StartCoroutine(MoveObject(info.cam));
65        }
66
67        public override void DisabledInteract()
68        {
69
70        }
71    }
72}

Code I made for the Interaction Editor

1#if UNITY_EDITOR
2using UnityEditor;
3using SystemUtilities;
4using UnityEngine;
5
6namespace Interactions
7{
8    [CustomEditor(typeof(Interaction), true), CanEditMultipleObjects]
9    public class InteractionEditor : Editor
10    {
11        // ----- Fields
12        private bool showSettings;
13
14        private SerializedProperty outOfRangeTex;
15        private SerializedProperty unselectedTex;
16        private SerializedProperty selectedTex;
17        private SerializedProperty unselectedDisabledTex;
18        private SerializedProperty selectedDisabledTex;
19
20        private SerializedProperty interactionType;
21        private SerializedProperty showDistance;
22        private SerializedProperty interactDistance;
23        private SerializedProperty showAngle;
24        private SerializedProperty interactAngle;
25        private SerializedProperty showHeight;
26        private SerializedProperty interactHeight;
27        private SerializedProperty showOffsetHeight;
28        private SerializedProperty interactOffsetHeight;
29        private SerializedProperty interactRange;
30
31        private SerializedProperty mantainInitialRotation;
32        private SerializedProperty interactOnKeyPressed;
33        private SerializedProperty onlySeeWithRaycast;
34        private SerializedProperty conditions;
35
36        // ----- Unity Events
37        void OnEnable()
38        {
39            outOfRangeTex = serializedObject.FindProperty("outOfRangeTex");
40            unselectedTex = serializedObject.FindProperty("unselectedTex");
41            selectedTex = serializedObject.FindProperty("selectedTex");
42            unselectedDisabledTex = serializedObject.FindProperty("unselectedDisabledTex");
43            selectedDisabledTex = serializedObject.FindProperty("selectedDisabledTex");
44
45            interactionType = serializedObject.FindProperty("interactionType");
46            showDistance = serializedObject.FindProperty("showDistance");
47            interactDistance = serializedObject.FindProperty("interactDistance");
48            showAngle = serializedObject.FindProperty("showAngle");
49            interactAngle = serializedObject.FindProperty("interactAngle");
50            showHeight = serializedObject.FindProperty("showHeight");
51            interactHeight = serializedObject.FindProperty("interactHeight");
52            showOffsetHeight = serializedObject.FindProperty("showOffsetHeight");
53            interactOffsetHeight = serializedObject.FindProperty("interactOffsetHeight");
54            interactRange = serializedObject.FindProperty("interactRange");
55
56            mantainInitialRotation = serializedObject.FindProperty("mantainInitialRotation");
57            interactOnKeyPressed = serializedObject.FindProperty("interactOnKeyPressed");
58            onlySeeWithRaycast = serializedObject.FindProperty("onlySeeWithRaycast");
59            conditions = serializedObject.FindProperty("conditions");
60        }
61
62        // ----- Private Methods
63        private static void DrawArc(Vector3 pos, Vector3 forward, Vector3 right, float angle, float distance)
64        {
65            Vector3 dir1 = Quaternion.AngleAxis(-angle, right) * forward;
66            Vector3 dir2 = Quaternion.AngleAxis(angle, right) * forward;
67
68            Handles.DrawLine(pos, pos + dir1 * distance);
69            Handles.DrawLine(pos, pos + dir2 * distance);
70
71            Handles.DrawWireArc(pos, right, dir1, angle * 2f, distance);
72        }
73
74        private static void DrawDisc(Vector3 startPos, Vector3 forward, Vector3 right, float angle, float distance)
75        {
76            Vector3 dir1 = Quaternion.AngleAxis(angle, right) * forward;
77            Vector3 dir2 = Quaternion.AngleAxis(-angle, right) * forward;
78
79            Vector3 pos = Vector3.Lerp(startPos + dir1 * distance, startPos + dir2 * distance, 0.5f);
80            float radius = Vector3.Distance(pos, startPos + dir1 * distance);
81
82            Handles.DrawWireDisc(pos, forward, radius);
83        }
84
85        private static void DrawLines(Vector3 startPos, Vector3 forward, Vector3 up, float angle, float distance, float height, float offset)
86        {
87            Vector3 dir1 = Quaternion.AngleAxis(-angle, up) * forward;
88            Vector3 dir2 = Quaternion.AngleAxis(angle, up) * forward;
89
90            Vector3 add = up * (0.5f * height - offset);
91            Vector3 pos1 = startPos + dir1 * distance - add;
92            Vector3 pos2 = startPos + dir2 * distance - add;
93
94            Handles.DrawLine(pos1, pos1 + up * height);
95            Handles.DrawLine(pos2, pos2 + up * height);
96        }
97
98        private static void DrawDirectional3D(Interaction script)
99        {
100            Vector3 pos = script.transform.position;
101            Vector3 forward = script.transform.forward;
102            Vector3 up = script.transform.up;
103            Vector3 right = script.transform.right;
104
105            Handles.color = "FFCE33".HexToColor();
106            DrawArc(pos, forward, up, script.ShowAngle, script.ShowDistance);
107            DrawArc(pos, forward, right, script.ShowAngle, script.ShowDistance);
108            DrawDisc(pos, forward, right, script.ShowAngle, script.ShowDistance);
109
110            Handles.color = "FF8633".HexToColor();
111            DrawArc(pos, forward, up, script.InteractAngle, script.InteractDistance);
112            DrawArc(pos, forward, right, script.InteractAngle, script.InteractDistance);
113            DrawDisc(pos, forward, right, script.InteractAngle, script.InteractDistance);
114        }
115
116        private static void DrawDirectional2D(Interaction script)
117        {
118            Vector3 pos = script.transform.position;
119            Vector3 forward = script.transform.forward;
120            Vector3 up = script.transform.up;
121
122            Handles.color = "FFCE33".HexToColor();
123            DrawArc(pos + up * (0.5f * script.ShowHeight + script.ShowOffsetHeight), forward, up, script.ShowAngle, script.ShowDistance);
124            DrawArc(pos - up * (0.5f * script.ShowHeight - script.ShowOffsetHeight), forward, up, script.ShowAngle, script.ShowDistance);
125            DrawLines(pos, forward, up, script.ShowAngle, script.ShowDistance, script.ShowHeight, script.ShowOffsetHeight);
126
127            Handles.color = "FF8633".HexToColor();
128            float interactHeight = 0.5f * script.InteractHeight;
129            DrawArc(pos + up * (interactHeight + script.InteractOffsetHeight), forward, up, script.InteractAngle, script.InteractDistance);
130            DrawArc(pos - up * (interactHeight - script.InteractOffsetHeight), forward, up, script.InteractAngle, script.InteractDistance);
131            DrawLines(pos, forward, up, script.InteractAngle, script.InteractDistance, 2f * interactHeight, script.InteractOffsetHeight);
132
133            Vector3 pos1 = pos - up * (0.5f * script.ShowHeight - script.ShowOffsetHeight);
134            Vector3 pos2 = pos - up * (interactHeight - script.InteractOffsetHeight);
135            Vector3 pos3 = pos + up * (0.5f * script.ShowHeight + script.ShowOffsetHeight);
136            Vector3 pos4 = pos + up * (interactHeight + script.InteractOffsetHeight);
137
138            Handles.color = "FFCE33".HexToColor();
139            Handles.DrawLine(pos1, pos2);
140            Handles.DrawLine(pos3, pos4);
141            Handles.color = "FF8633".HexToColor();
142            Handles.DrawLine(pos2, pos4);
143        }
144
145        private static void DrawOmnidirectional(Interaction script)
146        {
147            Vector3 pos = script.transform.position;
148
149            Handles.color = "FFCE33".HexToColor();
150            Handles.DrawWireDisc(pos, Vector3.up, script.ShowDistance);
151            Handles.DrawWireDisc(pos, Vector3.right, script.ShowDistance);
152            Handles.DrawWireDisc(pos, Vector3.forward, script.ShowDistance);
153
154            Handles.color = "FF8633".HexToColor();
155            Handles.DrawWireDisc(pos, Vector3.up, script.InteractDistance);
156            Handles.DrawWireDisc(pos, Vector3.right, script.InteractDistance);
157            Handles.DrawWireDisc(pos, Vector3.forward, script.InteractDistance);
158        }
159
160        // ----- Public Methods
161        public void OnSceneGUI()
162        {
163            Interaction script = (Interaction)target;
164
165            if (script.InteractionType == Interaction.Type.Directional3D) DrawDirectional3D(script);
166            else if (script.InteractionType == Interaction.Type.Directional2D) DrawDirectional2D(script);
167            else DrawOmnidirectional(script);
168
169            if (!SceneView.lastActiveSceneView || !SceneView.lastActiveSceneView.camera) return;
170            Vector3 cameraDir = (SceneView.lastActiveSceneView.camera.transform.position - script.transform.position).normalized;
171            Handles.color = "FF4933".HexToColor();
172            Handles.DrawWireDisc(script.transform.position, cameraDir, script.InteractRange);
173        }
174
175        public override void OnInspectorGUI()
176        {
177            serializedObject.Update();
178
179            showSettings = EditorGUILayout.Foldout(showSettings, "Interaction Settings");
180            if (showSettings)
181            {
182                EditorGUI.indentLevel++;
183
184                EditorGUILayout.PropertyField(outOfRangeTex);
185                EditorGUILayout.PropertyField(unselectedTex);
186                EditorGUILayout.PropertyField(selectedTex);
187                EditorGUILayout.PropertyField(unselectedDisabledTex);
188                EditorGUILayout.PropertyField(selectedDisabledTex);
189
190                EditorGUILayout.PropertyField(interactionType);
191                EditorGUILayout.PropertyField(showDistance);
192                EditorGUILayout.Slider(interactDistance, 0f, showDistance.floatValue);
193
194                if ((Interaction.Type)interactionType.enumValueIndex != Interaction.Type.Omnidirectional)
195                {
196                    EditorGUILayout.PropertyField(showAngle);
197                    EditorGUILayout.Slider(interactAngle, 0f, showAngle.floatValue);
198                }
199
200                if ((Interaction.Type)interactionType.enumValueIndex == Interaction.Type.Directional2D)
201                {
202                    EditorGUILayout.PropertyField(showHeight);
203                    EditorGUILayout.Slider(interactHeight, 0f, showHeight.floatValue);
204                    EditorGUILayout.PropertyField(showOffsetHeight);
205                    EditorGUILayout.Slider(interactOffsetHeight,
206                        showOffsetHeight.floatValue - (0.5f * showHeight.floatValue - 0.5f * interactHeight.floatValue),
207                        showOffsetHeight.floatValue + (0.5f * showHeight.floatValue - 0.5f * interactHeight.floatValue));
208                }
209
210                EditorGUILayout.PropertyField(interactRange);
211
212                EditorGUILayout.PropertyField(mantainInitialRotation);
213                EditorGUILayout.PropertyField(interactOnKeyPressed);
214                EditorGUILayout.PropertyField(onlySeeWithRaycast);
215                EditorGUILayout.PropertyField(conditions);
216
217                EditorGUI.indentLevel--;
218            }
219
220            EditorGUILayout.Space(8f);
221
222            DrawPropertiesExcluding(serializedObject,
223                "m_Script", "outOfRangeTex", "unselectedTex", "selectedTex", "unselectedDisabledTex", "selectedDisabledTex",
224                "interactionType", "showDistance", "interactDistance", "showAngle", "interactAngle", "showHeight", "interactHeight", "showOffsetHeight",
225                "interactOffsetHeight", "interactRange", "mantainInitialRotation", "interactOnKeyPressed", "onlySeeWithRaycast", "conditions");
226
227            serializedObject.ApplyModifiedProperties();
228        }
229    }
230}
231#endif

INTERACTION

Interaction System
